Project Type

UL508A Control Panel for Waste to Energy Plant

Location

Indiana, USA

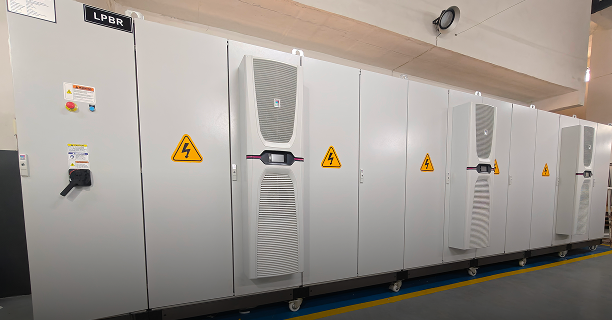

Remote I/O Panel

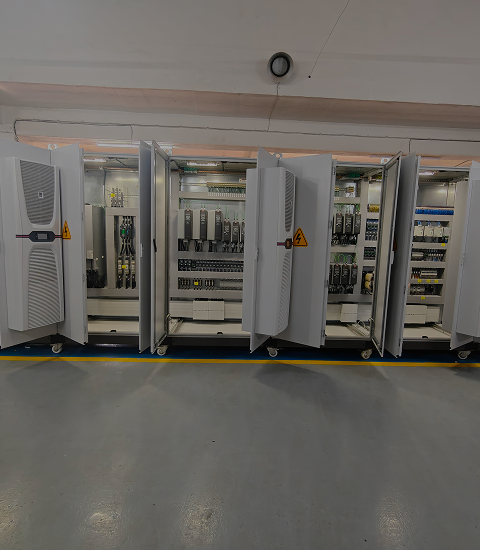

Control Panel

Challenges

Designing UL508A certified industrial control panels for the USA market
Achieving high reliability for continuous Bioenergy plant operation
Integrating PLC, HMI, SCADA and VFD systems into a unified architecture
Ensuring high Short Circuit Current Rating (SCCR) for enhanced safety
Maintaining reliable communication between automation and drive systems
Designing a modular and service-friendly power distribution system

Solution Delivered

Wicon Automation engineered and manufactured a complete Power, Automation and Control solution comprising:

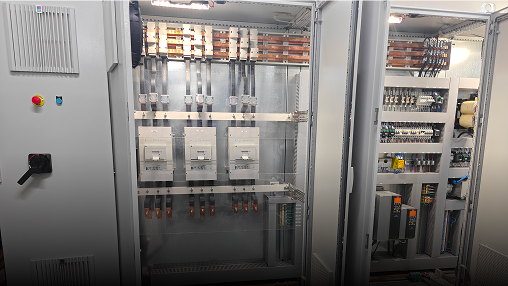

Remote I/O panel

RiLine Busbas System

Remote I/O panel

Control Panel

Remote I/O panel

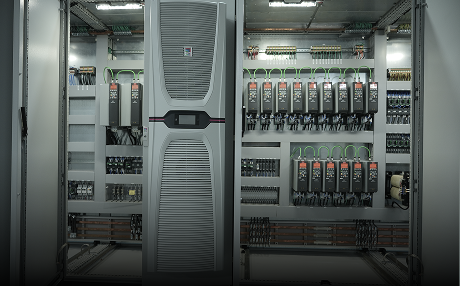

Danfoss AQUA VFDs

UL508A Certified Industrial Control Panels

Industrial HMI for local operation and diagnostics

Danfoss AQUA Variable Frequency Drives (VFDs)

1600 A Rittal Busbar System

Siemens S7-1500 PLC based Automation System

Siemens WinCC SCADA for centralized plant monitoring

ProfiNet based Industrial Communication Network

Rockwell Circuit Breakers and Protection Devices

Key Features

UL508A Certified panel design and manufacturing
35 kA SCCR panel design for enhanced fault withstand capability
Rockwell breakers for dependable circuit protection
Optimized panel layout for thermal management and ease of maintenance
Factory tested and validated as per customer and UL requirements

Results

Successful delivery of a complete UL508A compliant control panel system
Reliable and scalable automation architecture for Bioenergy applications
Enhanced operational safety with 35 kA SCCR design
Seamless integration of PLC, SCADA and VFD systems
Improved maintainability through modular panel construction
Compliance with North American industrial standards and customer specifications
Ready for long-term, continuous operation in demanding industrial environments

Explore other case studies

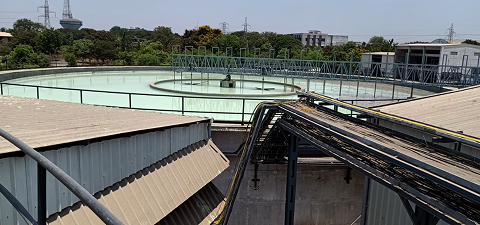

Hojiwala CETP
